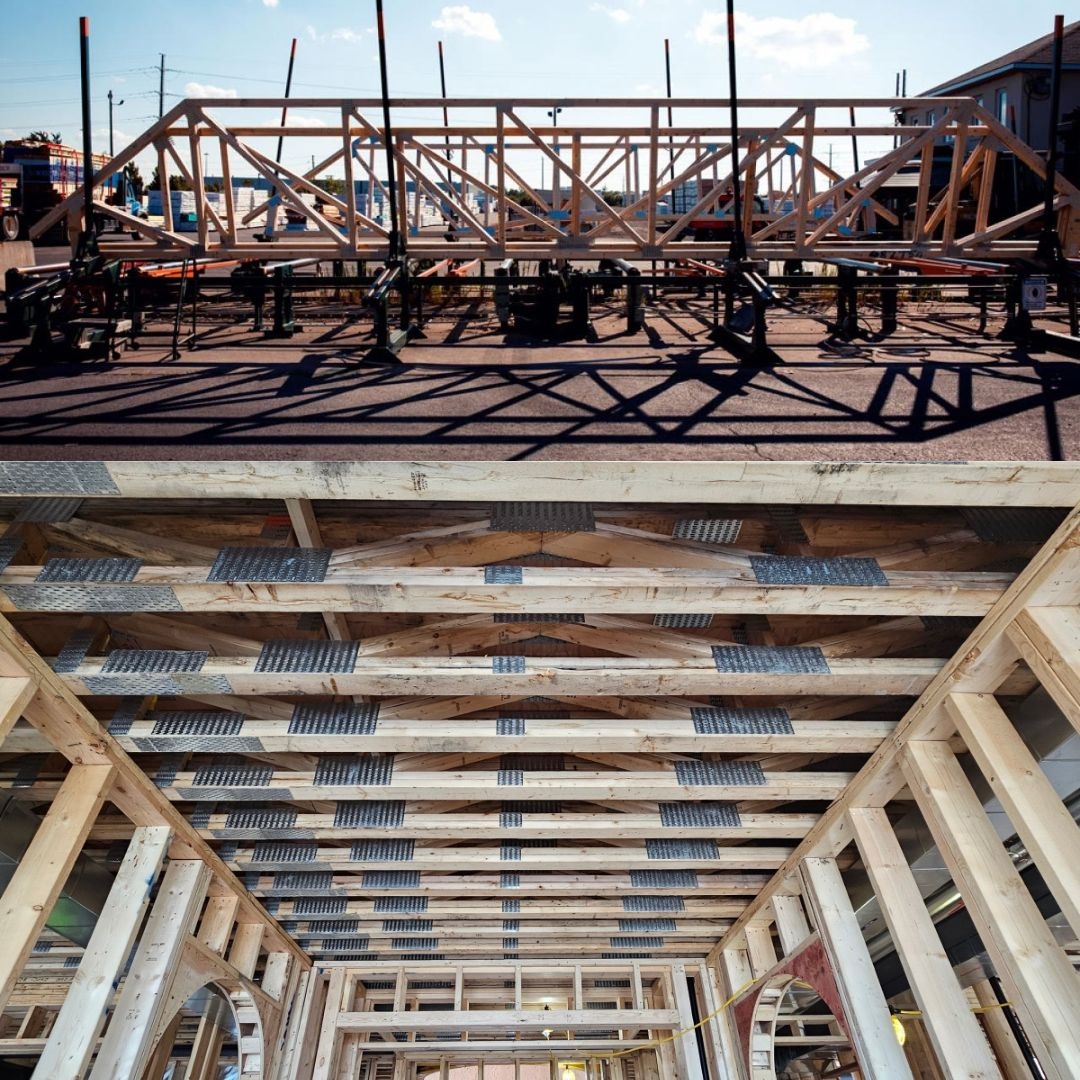

A Detailed Comparison Between Floor And Roof Trusses

The main differences between floor and roof trusses include the primary loads, geometry, and deflection limits. Tamarack Lumber Inc., a leading manufacturer of roof trusses, prefab wall panels, floor panels, and more, explores these comparisons in detail in this blog.

How To Floor And Roof Trusses Differ From Each Other?

Primary Loads

The primary loads acting on roof trusses and floor trusses are fundamentally different. In the case of the former, it is mainly a combination of environmental load, apart from the trusses themselves, such as wind, snow, rain, and any type of dead load.

In the case of floor trusses, the type of load is a combination of live and dead loads. It means the load of the trusses and supporting material, as well as that of the occupants. This requires the floor trusses to be more robust and handle greater loads than roof trusses.

Geometry

The difference in geometry or design between the two trusses is also significant. Most roof trusses have a somewhat triangular or at least sloped design to allow rain and snow to move off the roof.

Floor trusses, on the other hand, are typically flat and rectangular in profile, as it is vital to create a stable and level floor. Thus, the variations in floor trusses are somewhat limited.

Deflection Limits

Deflection limit is a key factor for both floor and roof trusses. It is the amount of vertical sagging or bending that a truss can allow without compromising its structural safety and stability. It is typically calculated as a fraction of the entire span of the truss.

For a roof truss, a typical deflection limit is about L/240, where L is the span of the truss. Floor trusses, on the other hand, have a deflection limit of about L/360 or higher. These stricter limits for floor trusses reinforce their rigidity and stability when compared to the roof truss.

Conclusion

To conclude, floor and roof trusses vary significantly in terms of geometry, deflection limits and primary loads acting on them. This distinction makes it easier for contractors and builders to choose the respective trusses as required.

Want to learn more about the features of the floor and roof truss? Tamarack Lumber Inc. is here to help. We manufacture high–quality prefab wall panels, floor panels, and customized trusses. For more details, contact us at 905-335-1115 today.

FAQs:

When to opt for roof trusses during construction?

Roof trusses are the right choice for complex geometries, for distances spanning over 40 feet, or for speedier construction times.

When to opt for floor trusses during construction?

Floor trusses are optimal for construction in the case of multi-storey constructions or to maximize ceiling height.
